SC::SerialDescriptor Struct Reference

Native serial port descriptor with configuration support. More...

#include <SerialPort.h>

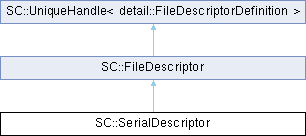

Inheritance diagram for SC::SerialDescriptor:

Public Member Functions
Result	open (StringSpan path, const SerialOpenOptions &options=SerialOpenOptions())
	Opens a serial port and applies the requested settings.
Result	setSettings (const SerialSettings &settings)
	Applies settings to an already opened serial descriptor.
Result	getSettings (SerialSettings &settings) const
	Reads current settings from an opened serial descriptor.
Public Member Functions inherited from SC::FileDescriptor
Result	openForWriteToDevNull ()
	... [UniqueHandleDeclaration2Snippet]
Result	openStdOutDuplicate ()
	Opens a duplicated file descriptor handle for reading from stdout.
Result	openStdErrDuplicate ()
	Opens a duplicated file descriptor handle for reading from stderr.
Result	openStdInDuplicate ()
	Opens a duplicated file descriptor handle for reading from stdin.
Result	open (StringSpan path, FileOpen mode)
	Opens a file descriptor handle from a file system path.
Result	read (Span< char > data, Span< char > &actuallyRead, uint64_t offset)
	Reads bytes at offset into user supplied span.
Result	read (Span< uint8_t > data, Span< uint8_t > &actuallyRead, uint64_t offset)
	Reads bytes at offset into user supplied span.
Result	read (Span< char > data, Span< char > &actuallyRead)
	Reads bytes from current position (FileDescriptor::seek) into user supplied Span.
Result	readUntilFullOrEOF (Span< char > data, Span< char > &actuallyRead)
	Reads bytes from current position (FileDescriptor::seek) into Span, until full or EOF is reached.
Result	read (Span< uint8_t > data, Span< uint8_t > &actuallyRead)
	Reads bytes from current position (FileDescriptor::seek) into user supplied Span.
template<typename T >
Result	readUntilEOF (T &destination)
	Reads into a given dynamic buffer until End of File (EOF) is signaled.
Result	readUntilEOF (IGrowableBuffer &&buffer)
	Reads into a given dynamic buffer until End of File (EOF) is signaled.
Result	writeString (StringSpan data)
	Writes a string to the file descriptor.
Result	write (Span< const char > data, uint64_t offset)
	Writes bytes at offset from start of the file descriptor.
Result	write (Span< const uint8_t > data, uint64_t offset)
	Writes bytes at offset from start of the file descriptor.
Result	write (Span< const char > data)
	Writes bytes from current position (FileDescriptor::seek) of the file descriptor.
Result	write (Span< const uint8_t > data)
	Writes bytes from current position (FileDescriptor::seek) of the file descriptor.
Result	seek (SeekMode seekMode, int64_t offset)
	Changes the current position in the file descriptor, if seekable.
Result	currentPosition (size_t &position) const
	Gets current descriptor position (if seekable)
Result	sizeInBytes (size_t &sizeInBytes) const
	Gets total file size in bytes (if seekable)
	UniqueHandle ()=default
	UniqueHandle (const UniqueHandle &v)=delete
	UniqueHandle (UniqueHandle &&v)
	UniqueHandle (const Handle &externalHandle)

Additional Inherited Members
Public Types inherited from SC::FileDescriptor
enum	SeekMode {   SeekStart ,   SeekEnd ,   SeekCurrent }
	How the offset to FileDescriptor::seek is defined. More...

Detailed Description

Native serial port descriptor with configuration support.

    SerialDescriptor serial;
    SerialOpenOptions options;
    options.settings.baudRate    = 115200;
    options.settings.dataBits    = SerialSettings::DataBits::Bits8;
    options.settings.parity      = SerialSettings::Parity::None;
    options.settings.stopBits    = SerialSettings::StopBits::One;
    options.settings.flowControl = SerialSettings::FlowControl::None;
#if SC_PLATFORM_WINDOWS
    StringView serialPath = "COM3";
#else
    StringView serialPath = "/dev/ttyUSB0";
#endif
    SC_TRY(serial.open(serialPath, options));

    SerialSettings current;
    SC_TRY(serial.getSettings(current));
    current.baudRate = 57600;
    SC_TRY(serial.setSettings(current));

    const char tx[] = {'P', 'I', 'N', 'G'};
    SC_TRY(serial.write({tx, sizeof(tx)}));

    char       rxBuffer[64] = {};
    Span<char> rxData;
    SC_TRY(serial.read({rxBuffer, sizeof(rxBuffer)}, rxData));
    // rxData is a slice of rxBuffer with the actual received bytes

Member Function Documentation

getSettings()

Result SC::SerialDescriptor::getSettings

(

SerialSettings &

settings

)

const

Reads current settings from an opened serial descriptor.

Parameters

settings

Output settings.

Returns

Valid Result if settings have been read.

open()

Result SC::SerialDescriptor::open	(	StringSpan	path,
		const SerialOpenOptions &	options = SerialOpenOptions() )

Opens a serial port and applies the requested settings.

Parameters

path	Serial device path (/dev/tty* on Posix, COM* on Windows)
options	Open and configuration options.

Returns

Valid Result if open/configuration succeeded.

setSettings()

Result SC::SerialDescriptor::setSettings

(

const SerialSettings &

settings

)

Applies settings to an already opened serial descriptor.

Parameters

settings

Settings to apply.

Returns

Valid Result if settings have been applied.

---

The documentation for this struct was generated from the following file:

• SerialPort.h
